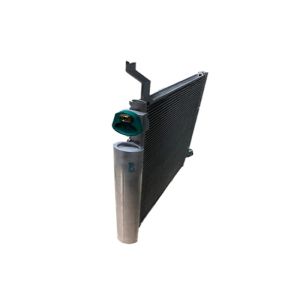

36mm tube Standard Compact Microchannel Heat Exchangers Air Cooled

Ask Lasest Price
Brand Name :	Shenglin
Model Number :	Not Standard
Price :	20~1000USD/piece
Payment Terms :	T/T, Western Union
Supply Ability :	10000 Pcs Per Month
Delivery Time :	30~35 days

Add to Cart

Product Details
Company Profile

36mm tube Standard Compact Microchannel Heat Exchangers Air Cooled

Standard Model of MicroChannel Heat Exchangers

Standard Specification:

This is our standard type, more detailed data please contact us.

Standard Type	Total Length		Total Height		Tube Width		Inlet ID		Outlet
Standard Type	[mm]	[in]	[mm]	[in]	[mm]	[in]	[mm]	[in]	[mm]	[in]
SC-1000	333.2	13.12	299.7	11.80	16	0.63	6.35	1/4	6.35	1/4
SC-1100	388	15.28	346.7	13.65	16	0.63	6.35	1/4	6.35	1/4
SC-1200	460	18.11	431.3	16.98	16	0.63	7.94	1/3	6.35	1/4
SC-1300	550	21.65	515.9	20.31	16	0.63	9.52	3/8	7.94	1/3
SC-1400	780	30.70	769.7	30.30	16	0.63	9.52	3/8	9.52	3/8
SC-1500	1074	42.28	518	20.39	25.4	1	12.70	1/2	12.7	1/2
SC-1600	1280	50.39	618.5	25.37	16	0.63	12.70	1/2	12.7	1/2
SC-1700	1324	52.13	638	25.12	25.4	1	15.88	5/8	12.7	1/2
SC-1800	1074	42.28	1208	47.56	25.4	1	22.20	7/8	22.2	7/8
SC-1900	1274	50.16	1358	53.46	25.4	1	22.20	7/8	22.2	7/8
SC-2000	2000	78.74	1058	41.65	25.4	1	25.40	1	22.2	7/8

Company Ability:

1. We have enough professional and technical personnel to research, develop and manufacture heat exchangers to ensure professional quality.

2. The core members are always ready to provide you with caring, professional and reliable services.

3. Our products come directly from the factory, and we will give you the most favorable price.

4. Products structure design based on CAE, which optimize products performance process, improved products` R&D efficiency, and reduce products` design cost.

5. Environmental simulation and thermal performance test ensure productions` function. The mechanical strength and chemical composition analysis ensure products` reliability.
