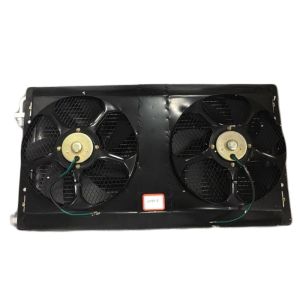

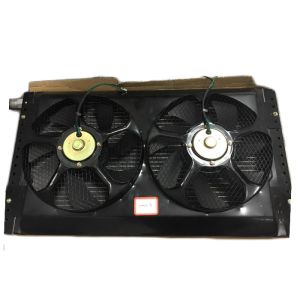

Micro Channel Heat Exchanger For Transport Refrigeration
Advantage:
1. Saving. Energy conservation is an important indicator of today's
air conditioner. Conventional heat exchangers difficult to
manufacture high-grade energy efficiency standards such as grade Ⅰ
products, micro- channel heat exchanger would be the best choice to
solve the problem.
2. Outstanding heat transfer properties. In terms of household air
conditioners, when the flow channel size less than 3mm, gas-liquid
two-phase flow and phase change heat transfer law will be different
from the conventional larger size , the smaller the channel , the
size effect is more obvious. When the tube diameter as small as ?
When 0.5 ~ 1mm, the convective heat transfer coefficient can be
increased by 50 % to 100 %. This enhanced heat transfer technology
for the air conditioning heat exchangers, heat transfer enhancement
measures appropriate to change the heat exchanger structure ,
process and air side , is expected to effectively enhance the air
conditioning heat exchanger to increase their energy levels .
3. Promotion potential. Microchannel heat exchanger technology as
well as to promote the potential of air heater air conditioning
manufacturing, can greatly enhance the competitiveness and
sustainable development of enterprise products.
4. Compared with conventional heat exchangers, microchannel heat
exchanger heat transfer coefficient is not only small size , high
heat transfer efficiency, to meet higher energy efficiency
standards, and has excellent pressure resistance, can CO2 as the
working fluid cooling, in line with environmental requirements, has
caused widespread concern in academic and industrial circles.
Currently, the micro-channel heat exchanger key technologies -
producing micro-channel parallel flow tubes in the country has
matured , making the micro- channel heat exchanger using a scale as
possible.
Technical Data:
| Width(mm) | Thickness(mm) | Hole No. |
| Flat pipe specifications | 12 | 1.2 | 17 |
| 16 | 1.3 | 16 |
| 20 | 2 | 12 |
| 25.4 | 2 | 13 |
| 25.4 | 2 | 20 |
| 32 | 2 | 25 |
| 36 | 2 | 26 |
| 36 | 3 | 23 |
|
| fin | plain |
| corrugated plate |
| window plate |
Structure:
Application:
Corach air-con, telecommunication environment control, hot and cold
water machine,food cooling, commercial air conditioner, railway
air-conditioning, new energy, condensing unit, commercial air
conditioner, transport refrigeration, computer room air
conditioning and medical equipment.
Packing:
Why choose us?
1. We have more than 3 technicians to research, develop and
manufacture heat exchanger to assure the quality.
2. Our core members dedicated themselves to offer you professional
and reliable services.
3. We provide customers with greatest service and best price.
