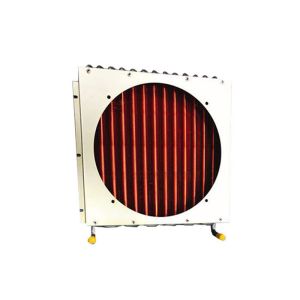

Copper Finned SUS304 Tube Air Cooling Coils For Laser Equipment

Ask Lasest Price
Brand Name :	Shenglin
Certification :	RoHS
Price :	15~100USD/Unit
Payment Terms :	T/T, Western Union
Supply Ability :	10000 Pcs Per Month
Delivery Time :	15~25 days
Model Number :	OEM/ODM

Add to Cart

Product Details
Company Profile

Copper Finned SUS304 Tube Air Cooling Coils For Laser Equipment

Stainless Steel Tube And Copper Fin Air Cooling Coils

Product Application

A heat exchanger is an energy-saving device that transfers heat between materials at two or more fluids at different temperatures. It transfers heat from a higher temperature fluid to a lower temperature fluid, allowing the fluid temperature to reach the flow. Specified indicators to meet the needs of process conditions, but also one of the main equipment to improve energy efficiency. ·Mainly concentrated in the fields of petroleum, chemical, metallurgy, electric power, shipbuilding, central heating, refrigeration and air conditioning, machinery, food, pharmaceuticals, etc. ·Our factory currently focuses on large heat exchangers for various industry.

Raw materials

TUBE	Copper	Titanium	Aluminum	Carbon steel
TUBE	Stainless steel 304	Stainless steel 316	Cu-Ni(90/10)	Cu-Ni(70/30)
FIN	Copper	Aluminum	Stainless steel
FIN	Carbon steel	Titanium
FRAME	Galvanized	Aluminum	Stainless steel

Mold:

No.	Tube O.D. (mm)	Fin Pattern		Fin Type	Fin space	Remark
No.	Tube O.D. (mm)	Row Space (mm)	Hole Space (mm)	Fin Type	Fin space	Remark
1	5	11.6	19.5	Flat, corrugated/sine wave, window	1.2~1.6
2	7	12.7	21	Corrugated/sine wave, window	1.2~3.0	Aluminum tube is available
3	7	12.7	19.05	Corrugated/sine wave, window	1.3~3.0
4	7.94	15.88	25.4	Flat,Corrugated/Sine wave,WindowFlat, corrugated/sine wave, window
5	7.94	19.05	22	Flat, corrugated/sine wave, window	1.4~3.0
6	7.94	21.65	25	Flat, corrugated/sine wave, window	1.4~3.0
7	9.52	12.7	25.4	Flat, corrugated/sine wave, window	1.6~2.5
8	9.52	16.5	19.05	Flat, corrugated/sine wave, window	1.6~3.2	Aluminum and stainless steel tube is available
9	9.52	15.88	25.4	Flat, corrugated/sine wave, window	1.6~3.2
10	9.52	21.65	25	Flat, corrugated/sine wave, window	1.6~6.0	Aluminum and stainless steel tube is available
11	9.52	22	25.4	Flat, corrugated/sine wave, window	1.6~6.0	Aluminum and stainless steel tube is available
12	9.52	25	25	Corrugated/sine wave	2.5-4.2
13	9.52	30	30	Sesamoid fin	4.0~6.0
14	12.0	35	35	Corrugated/sine wave	4.0~6.0
15	12.75	27.5	31.75	Flat, corrugated/sine wave, window	1.5~3.5	Aluminum and stainless steel tube is available
16	14.5	52	45	Corrugated/sine wave	4.0~7.0
17	15.2	75	25	Corrugated/sine wave	8.0~10
18	15.2	60	30	Corrugated/Sine wave	8.0~10
19	15	50	50	Corrugated/Sine wave	4.5~9
20	15.88	33	38.1	Flat, corrugated/sine wave, window	1.5~7.5	Aluminum and stainless steel tube is available

Tube material range:

Fin material range:

Plate material range:

Production Process:

Quality control:
