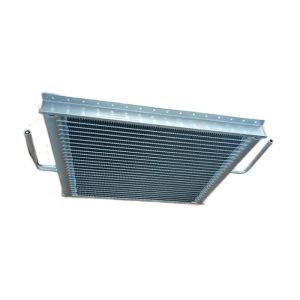

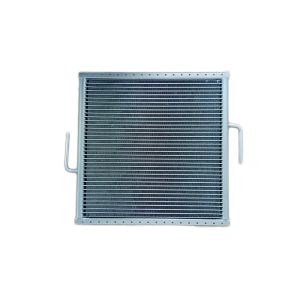

Microchannel Condenser For Telecommunication Control Air
Conditioner
Features:
1.Condenser core thickness: reach to 12, 16, 20, 25.4, 32, 36mm.
2.Lower weight-more compact design
4.Longer lifetime-higher product reliability
5.More friendly for environment-easier to recycle
6.Cost efficient-lees refrigerant change
Standard Specification:
| Standard Model | Total Length | Total Height | Tube Width | Inlet ID | Outlet |
|
| [L] | [H] | [D] | [F] | [F] |
| [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm | [in] | [mm] | [in] |
| SC-1000 | 333.2 | 13.12 | 299.7 | 11.80 | 16 | 0.63 | 6.35 | 1/4 | 6.35 | 1/4 |
| SC-1100 | 388 | 15.28 | 346.7 | 13.65 | 16 | 0.63 | 6.35 | 1/4 | 6.35 | 1/4 |
| SC-1200 | 460 | 18.11 | 431.3 | 16.98 | 16 | 0.63 | 7.94 | 1/3 | 6.35 | 1/4 |
| SC-1300 | 550 | 21.65 | 515.9 | 20.31 | 16 | 0.63 | 9.52 | 3/8 | 7.94 | 1/3 |
| SC-1400 | 780 | 30.70 | 769.7 | 30.30 | 16 | 0.63 | 9.52 | 3/8 | 9.52 | 3/8 |
| SC-1500 | 1074 | 42.28 | 518 | 20.39 | 25.4 | 1 | 12.70 | 1/2 | 12.7 | 1/2 |
| SC-1600 | 1280 | 50.39 | 618.5 | 25.37 | 16 | 0.63 | 12.70 | 1/2 | 12.7 | 1/2 |
| SC-1700 | 1324 | 52.13 | 638 | 25.12 | 25.4 | 1 | 15.88 | 5/8 | 12.7 | 1/2 |
| SC-1800 | 1074 | 42.28 | 1208 | 47.56 | 25.4 | 1 | 22.20 | 7/8 | 22.2 | 7/8 |
| SC-1900 | 1274 | 50.16 | 1358 | 53.46 | 25.4 | 1 | 22.20 | 7/8 | 22.2 | 7/8 |
| SC-2000 | 2000 | 78.74 | 1058 | 41.65 | 25.4 | 1 | 25.40 | 1 | 22.2 | 7/8 |
Application:
NEW ENERGY THERMAL MANAGEMENT
| DOMESTIC AIR-CON
| TELECOMMUNICATION CONTROL AIR-CON
|
 |  |  |
PRECESION DATA CENTER AIR-CON
| CONDENSING UNIT
| COMMERCIAL AIR-CON
|
 |  |  |
COACH AIR-CON
| TRANSPORT REFRIGERATION
| RAILWAY AIR-CON
|
 |  |  |
DEHUMIDIFIER
| MEDCCAL EQUIPMENT
| WOOD DRYING
|
 |  |  |
Why choose us:
1) We can help buyers design specific products or produce products
according to buyers' design
2) We can print logo according to buyers' requirement
3) We has exported to many countries,such as Singapore,
Philippines, Vietnam, Argentina, Peru, Mongolia, Hong Kong,
UAE,Russia, Poland etc.
4) Design term:We have professional design team.
5) Professional factory: We are manufacturer, specializing in
manufacturing heat exchangers for over 16years, competitive price
with good quality.
6)Rapid response to your needs: We will reply within 24 hours after
receiving you letter. If you have urgent thing, welcome to call us.
7)The Most Efficient Service, Best Quality and Excellent
Reputation.
